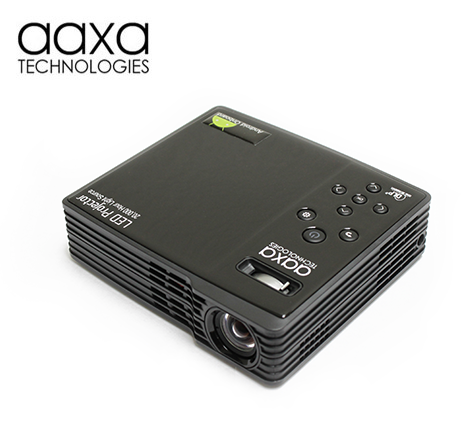

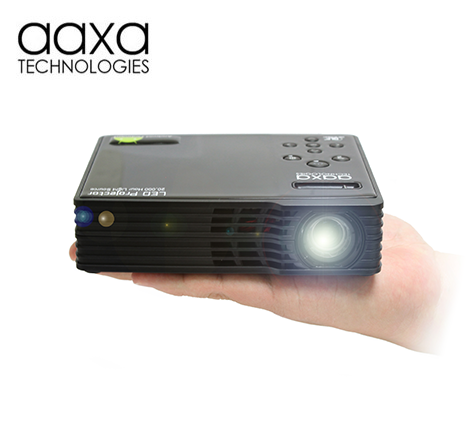

The AAXA LED Android Projector is the world's first high-lumen LED smart-projector. Featuring a dual core processor operating Android 4.4 with WiFi and Bluetooth connectivity, the AAXA LED Android places unparalleled flexibility into a device capable of projecting a 160" screen. At the heart of the system is AAXA's powerful optical engine capable of delivering 550 LED lumens at a high definition (HD) resolution of 1280x800. Powered by Texas Instruments DLP technology the AAXA LED Android employs cutting-edge LED technology to deliver dazzling color quality with an operating life of more than 20,000 hours.
AAXA's LED Android Projector is built on cutting-edge technology with an Android 4.4 (KitKat) operating system a high performance dual-core processor, 1GB of DDR memory, 4GB of onboard memory, 802.11 WiFi, Bluetooth 2.0, and an array of connectivity features including HDMI, VGA, composite video, and USB ports.
Streaming Media Platform
The LED Android Projector is a turn-key streaming media platform capable of streaming the latest content from a variety of different media sources including Youtube, Netflix, Hulu, HBO Go, Amazon Prime. (Pay sites require subscription)
Multi-Media Powerhouse
The LED Android is not just a projector but a stand-alone mobile computer. At the heart of the system is a 1.5GHz Dual Core CPU operating Android 4.4 and a WiFi chipset enabling full internet connectivity. Capabilities include web-browsing, photo editing, game play and the Google App-Store. Productivity capabilities include E-Mail, and office applications including spreadsheets, documents, and more. The possibilities are endless!
Game and Movie Ready
The LED Android is the perfect match for both gamers and movie enthusiasts. The LED Android is optically tuned for fast paced gaming where the color-sequential light-source coupled with a fast-acting imager eliminates color-smearing and rainbowing found on older color-wheel type projectors. Additionally, Osram LEDs were selected for the best color reproduction found in solid-state projection lighting.
High Definition WXGA Resolution
The LED Android features highest-in-class resolution at WXGA (1280x800), otherwise known as "High Definition 720P" and is the base resolution for blu-ray DVDs. Unlike competitors that claim high resolution through digital scaling, the LED Android's native resolution is 1280x800 pixels and is capable of scaling resolutions up to 1080P providing a native high definition experience.

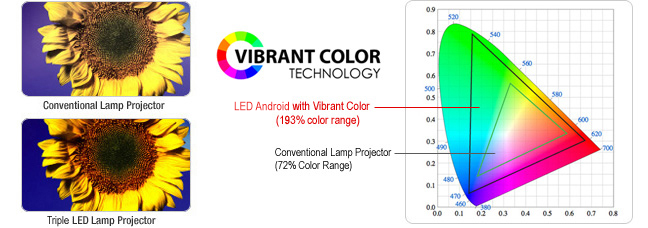

Super Color and Image Quality
The Vibrant Color Technology and triple Luminus LED light source in the LED Android produces a vivid display with amazing color saturation.

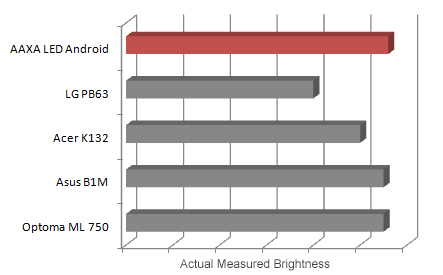

High Brightness Optical Engine
The LED Android features a high brightness 550 lumen optical engine (achievable in "boost" mode). The impressive brightness and efficiency is achieved through a combination of optical enhancements and most importantly OSRAM's thin-film and converter-green LED technology. The LED Android offers best in class brightness.
Long Operation Life and Quick On & Off
 | Conventional lamp-based projectors require frequent bulb changes with very expensive bulbs that cost hundred of dollars. |  | The LED Android's light source lasts 10 times longer than conventional lamps so bulb changes are a thing of the past! |
 |
Long warm-up and cool down times, sometimes for several minutes, are required for projectors using traditional lamps. |  |
The LED light source enables the LED Android to achieve full brightness within seconds. Of course, it turns off instantly as well. |
Automatic Keystone Correction
The LED Android has an advanced automatic keystone correction so your image is never out of proportion. The device will automatically sense if the projected image requires vertical keystone, and will adjust the image digitally.
Versatile Multimedia Support
- Onboard media player supports popular file formats
- Share movies, videos, photos with friends and family
- Bring presentations anywhere and everywhere
- Enjoy gaming and entertainment without large TV's

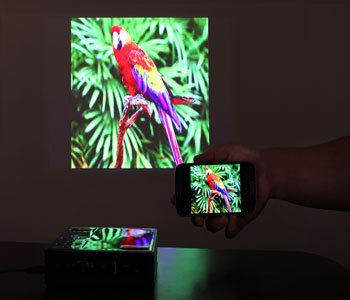

WiFi Display Mirroring

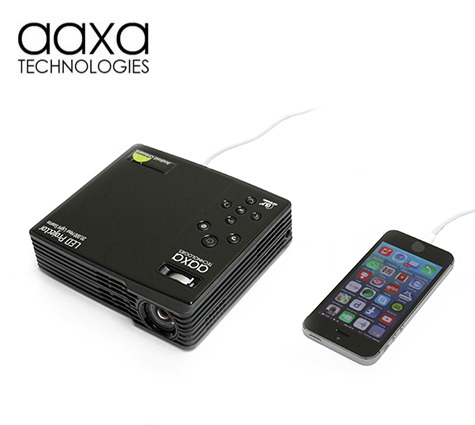

The LED Android allows smartphone users to directly project their display through a WiFi Connection and built-in app. Note: Not all smartphones are compatible, must have onboard wireless display unlocked.

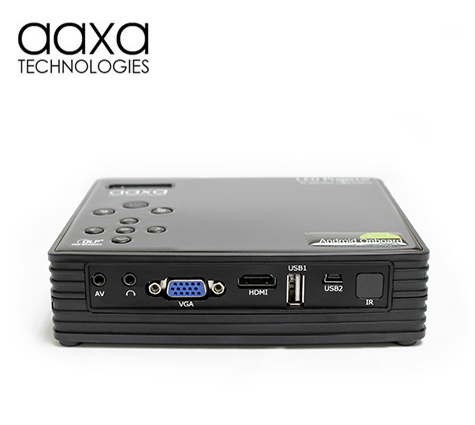

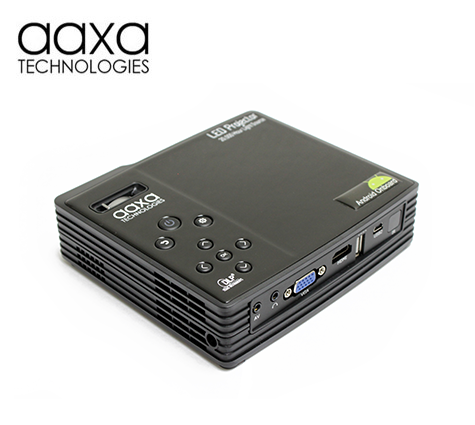

- Full-Size VGA Connection
- Full-Size 1080P HDMI Connection
- Mini-USB and Full USB Port for Video, Photo Playback and Accessory Inputs
- Composite RCA, Adapter included
- Audio Out 3.5mm Jack, Headphone Out
Environmentally Friendly
 |
The LED Android's light source consumes less power. The LED is also 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs. |
*160" image possible in low light conditions
| Max Resolution: | 1920x1080 (1080P) |
| Native Resolution: | 1280x800 (WXGA) |
| Brightness: | 550 Lumens (Boost Mode) |
| Contrast Ratio: | 2000:1 |
| Projection Lens: | Manual Focus |
| Projection Image: | Available Size 10 ~ 160 inch |
| Lamp: | Triple RGB LEDs with Vibrant Color Technology
Life 20,000hrs |
| Projection Angle: | 27.85° |
| Keystone Correction: | Auto and Manual (Digital) |
ANDROID SYSTEM
| Android Version: | 4.4 (KitKat) |
| Processor: | High Performance Dual Core |
| RAM: | 1GB |
| Onboard Storage: | 4GB |
| WiFi: | 802.11n |
| Bluetooth: | 2.0 |
GENERAL SPECIFICATIONS
| Audio Output: | 2W (x2) stereo speakers Stereo speaker/headphone mini-jack |
| Color: | Glossy Black |
| File Playback: | USB Memory Stick reader |
| Menu Language: | English, Spanish, French, Dutch, Chinese (Traditional and Simplified), Korean and Japanese |
| Aspect Ratio Control: | 16:10 |
| Throw Ratio: | 1.22 |
| Dimensions: | 5.9" * 5.2" * 1.4" |
| Weight: | 1.5 lbs |
| Power Consumption: | 85w |
| Supported Formats: | MP3 / AVI BMP / JPG / GIF / TXT |
| Conformances: | CE, FCC Class A |
INPUTS / OUTPUTS
| Video In: | HDMI VGA Composite A/V (3.5mm Jack) |
| Audio Out: | 3.5mm Stereo Headphone Jack |
| USB: | 5 Pin USB 2.0 (Full Size) 5 Pin Mini USB |
THROW RATIO (1.22)
| Screen Diagonal (inches) | Screen Distance (inches) |
| 19 | 20 |
| 28 | 30 |
| 38 | 40 |
| 47 | 50 |
| 56 | 60 |
| 66 | 70 |
| 75 | 80 |
| 85 | 90 |
INCLUDED ACCESSORIES

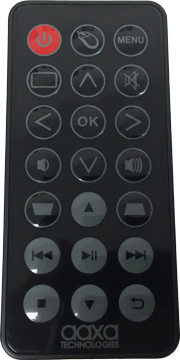

Power Adapter Remote Control |
Popular Accessories
 |
AAXA Lightning Presentation Cable for Apple iPhone/iPad
MSRP: $39.99 $27.99
|
 |
AAXA MHL Cable for Samsung Galaxy S3, S4, S5, Note 2, Note 3, Note 4
MSRP: $25.00 $19.99 |
 |
AAXA LED Android Remote Control
MSRP: $25.00 $9.99 |
 |
AAXA LED Android AV Cable
MSRP: $25.00 $9.99
|

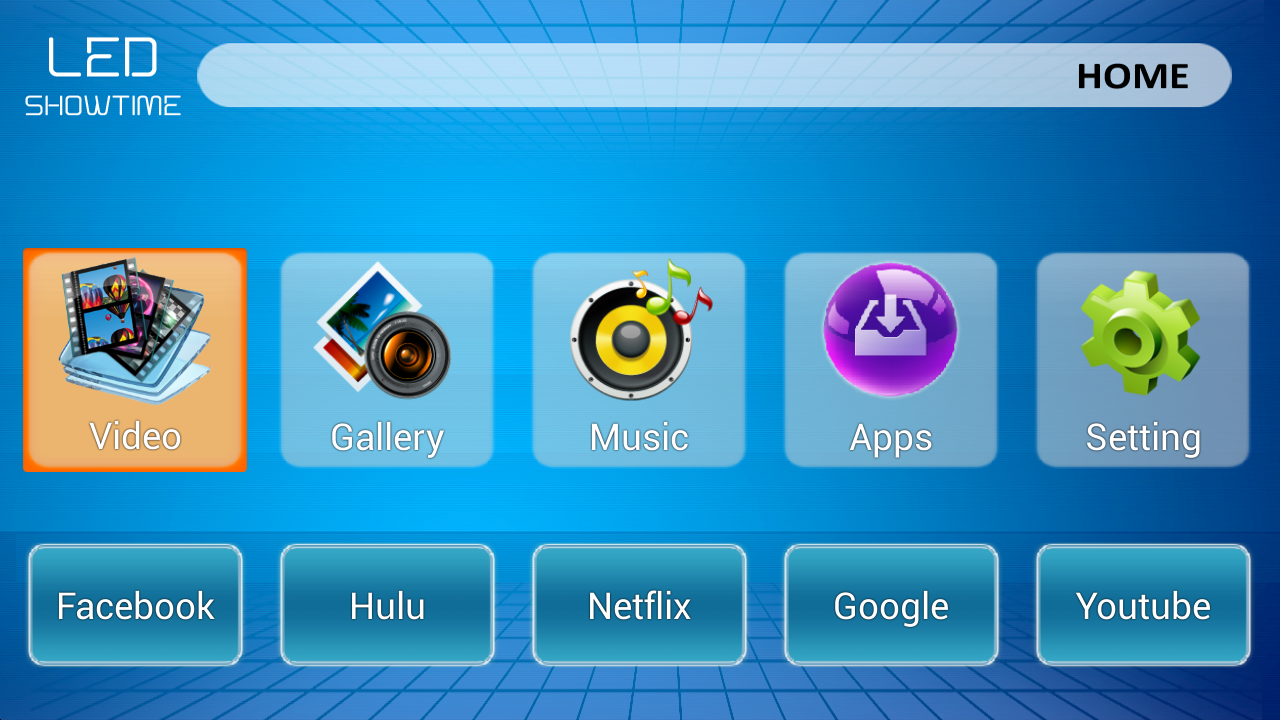

LED ANDROID MAIN MENU
Excellent Color Reproduction
|
160" Picture in Dark Room
|
Good performance in most lighting conditions
|

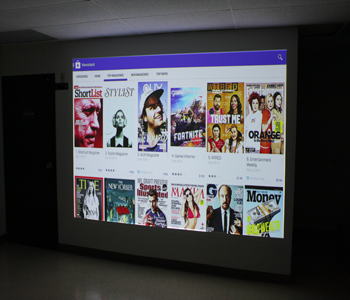

A Full Android Experience on your Wall!
|

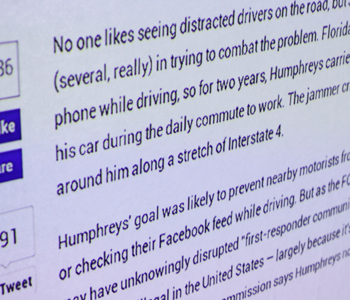

1280x800 Clear, Crisp text reproduction
|

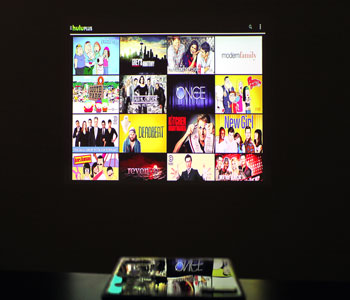

Stream your favorite movies and TV shows using Hulu App.
|
