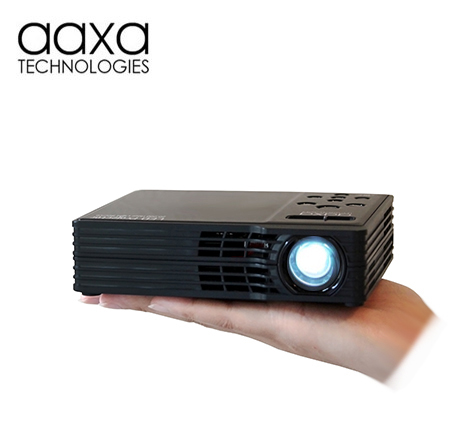

The AAXA LED Showtime 3D is a next generation projector employing Light-Emitting-Diodes (LEDs), an exceptional 450 lumen optical engine and a high resolution 1280x800 DLP imager. LED light-sources have a 20,000 hour life-span (10x that of traditional projector lamps) and directly inject red, green, and blue colored light into the projection engine instead of relying on filtering white light. The result is vivid, colorful images that lasts the life-time of the projector, eliminating the need to replace the projector lamp.


The AAXA LED Showtime 3D features native 720P (WXGA) resolution, advanced 450 lumen optical engine, 3D ready graphics processor, an onboard Movie, Slideshow, and Music player, and is capable of producing a deep, immersive picture of up to 160”. Inputs include full-sized HDMI and VGA inputs capable of supporting 1080P and 1280x800 respectively, a Composite Video input cable, headphone output, USB stick support for media playback, and onboard 2 watt speakers. With a powerful ARM processor, the Showtime can double as a stand-alone entertainment system without the need to connect to a video source or game console.




3D Ready Processor

---

The Showtime is 3D Ready with "DLP-3D" image processing capability able to display 3D movies, games, and educational content. 3D Operation requires 3D glasses and Quad Buffered 3D Graphics card. Details can be found here



Game and Movie Ready

---

The LED Showtime 3D is the perfect match for both gamers and movie enthusiasts. The LED Showtime is optically tuned for fast paced gaming where the color-sequential light-source coupled with a fast-acting imager eliminates color-smearing and rainbowing found on older color-wheel type projectors. Additionally Luminus LEDs were selected for the best color reproduction found in solid-state projection lighting.






High Definition WXGA Resolution

---

The LED Showtime 3D features highest-in-class resolution at WXGA (1280x800), otherwise known as "High Definition 720P" and is the base resolution for blu-ray DVDs. Unlike competitors that claim high resolution through digital scaling, the LED Showtime 3D's native resolution is 1280x800 pixels and is capable of scaling resolutions up to 1080P providing a native high definition experience.



Super Color and Image Quality

---

The Vibrant Color Technology and triple Luminus LED light source in the LED Showtime 3D produces a vivid display with amazing color saturation.



High Perceived Brightness

---

In darker environments the perception of brightness is influenced by contrast, color quality, and other optical factors rather than raw lumens. While the LED Showtime 3D's 450 lumens is brighter than the P300 model (rated at 300 peak lumens), the perceived difference is even greater because the LED Showtime 3D is specifically engineered for improved contrast, optical characteristics and color quality resulting in a substantially higher perceived brightness compared to the AAXA P300.`



Long Operation Life and Quick On & Off

---

Conventional lamp-based projectors require frequent bulb changes with very expensive bulbs that cost hundred of dollars.

The Showtime's LED light source lasts 10 times longer than conventional lamps so bulb changes are a thing of the past!

Long warm-up and cool down times, sometimes for several minutes, are required for projectors using traditional lamps.

The LED light source enables the LED Showtime 3D to achieve full brightness within seconds. Of course, it turns off instantly as well.

Automatic Keystone Correction

---

The LED Showtime 3D has an advanced automatic keystone correction so your image is never out of proportion. The device will automatically sense if the projected image requires vertical keystone, and will adjust the image digitally.



Versatile Multimedia Support

---

• Onboard media player supports popular file formats


• Share movies, videos, photos with friends and family


• Bring presentations anywhere and everywhere


• Enjoy gaming and entertainment without large TV's

Inputs & Connectors

---


• Full-Size VGA Connection


• Full-Size 1080P HDMI Connection


• USB Port for Video & Picture Playback


• Composite RCA, Adapter included


• Audio Out 3.5mm Jack, Headphone Out

Environmentally Friendly

---

The Showtime's LED light source consumes less power. The LED is also 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.

---

*160" image possible in low light conditions

PROJECTION SYSTEM

Max Resolution:	1920x1080 (1080P)
Native Resolution:	1280x800 (WXGA)
Brightness:	450 Lumens
Contrast Ratio:	2000:1
Projection Lens:	Manual Focus
Projection Image:	Available Size 10 ~ 160 inch
Lamp:	Triple RGB LEDs with Vibrant Color Technology Life 20,000hrs
Projection Angle:	27.85°
Keystone Correction:	Auto and Manual (Digital)

GENERAL SPECIFICATIONS

Audio Output:	2W (x2) stereo speakers Stereo speaker/headphone mini-jack
Color:	Glossy Black
File Playback:	USB Memory Stick reader
Menu Language:	English, Spanish, French, Dutch, Chinese (Traditional and Simplified), Korean and Japanese
Aspect Ratio Control:	16:10
Throw Ratio:	1.22
Dimensions:	5.9" * 5.2" * 1.4"
Weight:	1.5 lbs
Power Consumption:	85w
Supported Formats:	MP4 / MP3 / AVI BMP / JPG / GIF / TXT
Conformances:	CE, FCC Class A

INPUTS / OUTPUTS

Video In:	HDMI VGA Composite A/V (3.5mm Jack)
Audio Out:	3.5mm Stereo Headphone Jack
USB:	5 Pin USB 2.0

THROW RATIO (1.22)

Screen Diagonal (inches)	Screen Distance (inches)
19	20
28	30
38	40
47	50
56	60
66	70
75	80
85	90

INCLUDED ACCESSORIES

Composite AV Cable, Wall Charger, Remote Control

LED Showtime 3D MEDIA PLAYER MAIN MENU

160" Picture in Dark Room	Excellent Color Reproduction
Good performance in most lighting conditions	Good performance in most lighting conditions

100" image in moderately lit room	1280x800 Clear, Crisp text reproduction
Built for Gamers	Built for Movies

 AAXA LED Showtime 3D User Manual

Competitor Comparisons

LED Projectors versus UHP Projectors

Portable PowerPoint Presentations with AAXA Projectors

COMING SOON



Q. How do I play 3D Bluray content on my AAXA LED Showtime 3D?

A. Please click here to see instructions on how to play 3D Bluray content on your AAXA LED Showtime 3D


Q. How do I connect my AAXA LED Showtime 3D to an iPhone 5?

A. Please click here to see instructions on how to connect your AAXA LED Showtime 3D to an iPhone 5


Q. How do I play 3D content on my AAXA LED Showtime 3D?

A. Please click here to see instructions on how to play 3D media on your AAXA LED Showtime 3D


Q. How do I connect my AAXA LED Showtime 3D to an HDMI enabled device?

A. Please click here to see instructions on how to connect your AAXA LED Showtime 3D to an HDMI enabled device.


Q. How do I connect my AAXA LED Showtime 3D to a PC Computer?

A. Please click here to see instructions on how to connect your PC computer to the AAXA LED Showtime 3D


Q. How do I connect my AAXA LED Showtime 3D to a Mac Computer?

A. Please click here to see instructions on how to connect your Mac computer to the AAXA LED Showtime 3D

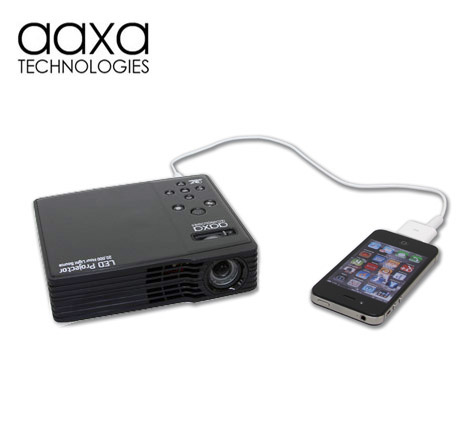

Q. How do I connect my AAXA LED Showtime 3D to an iPod/iPhone/iPad?

A. Please click here to see instructions on how to connect your iPod/iPhone/iPad to the AAXA LED Showtime 3D Projector


Q. How do I connect my LED Showtime 3D to an iPhone 4s?

A. Please click here to see instructions on how to connect your iPhone 4s to the AAXA LED Showtime 3D Projector

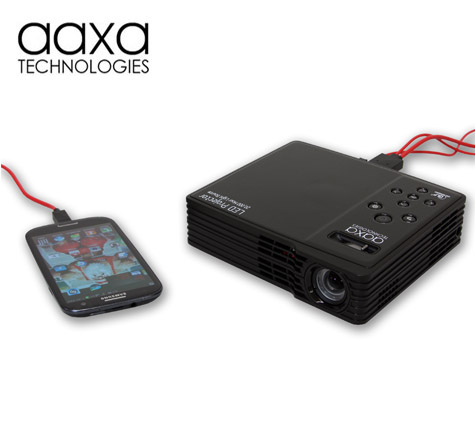

Q. How do I connect my AAXA LED Showtime 3D to an MHL enabled Android device?

A. Please click here to see instructions on how to connect your MHL enabled android device.


Q. How do I make portable presentations with my BlackBerry smartphone and the AAXA LED Showtime 3D Projector?

A. Please click here if you would like to make PowerPoint or PDF presentations using a BlackBerry


Q. Why does my AAXA LED Showtime 3D Projector make a noise when I try to connect to it with AV cables?

A. Please click here to see instructions on how to resolve this problem


Q. Why am I having trouble connecting my USB OTG (On the Go) flash memory drive?

A. Please click here to see instructions on how to resolve problems with USB OTG
