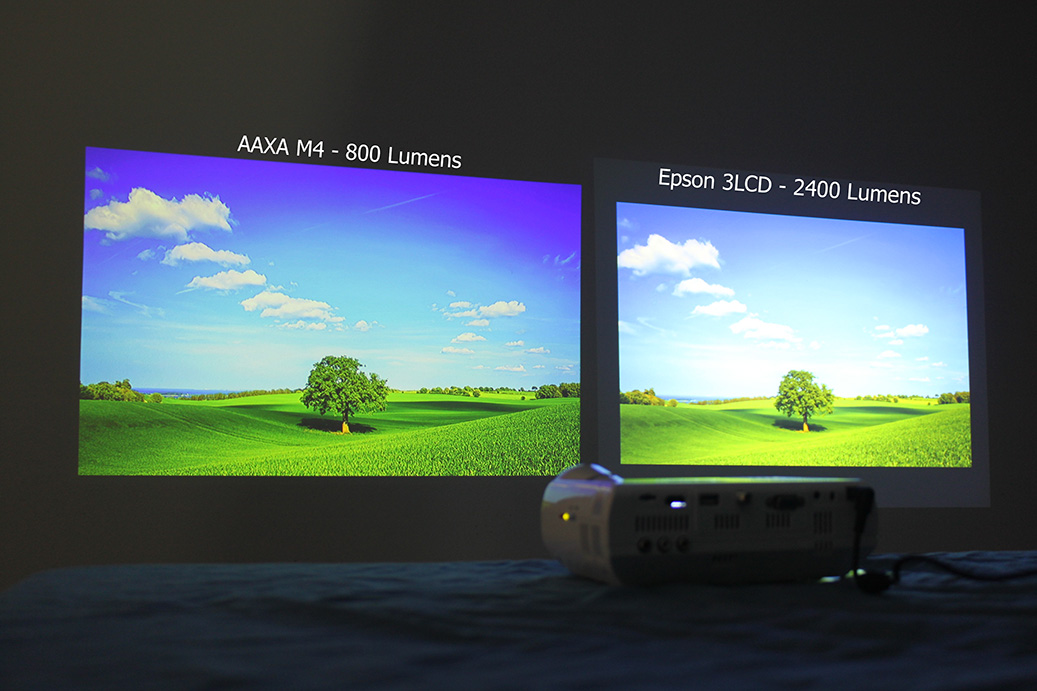

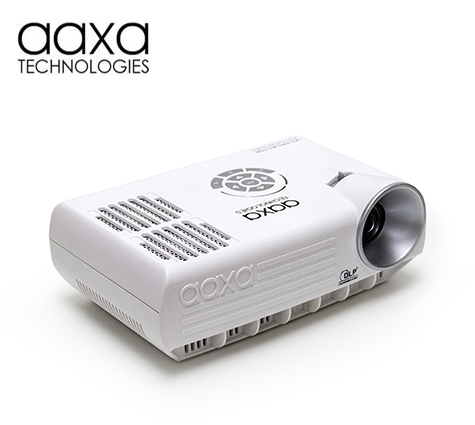

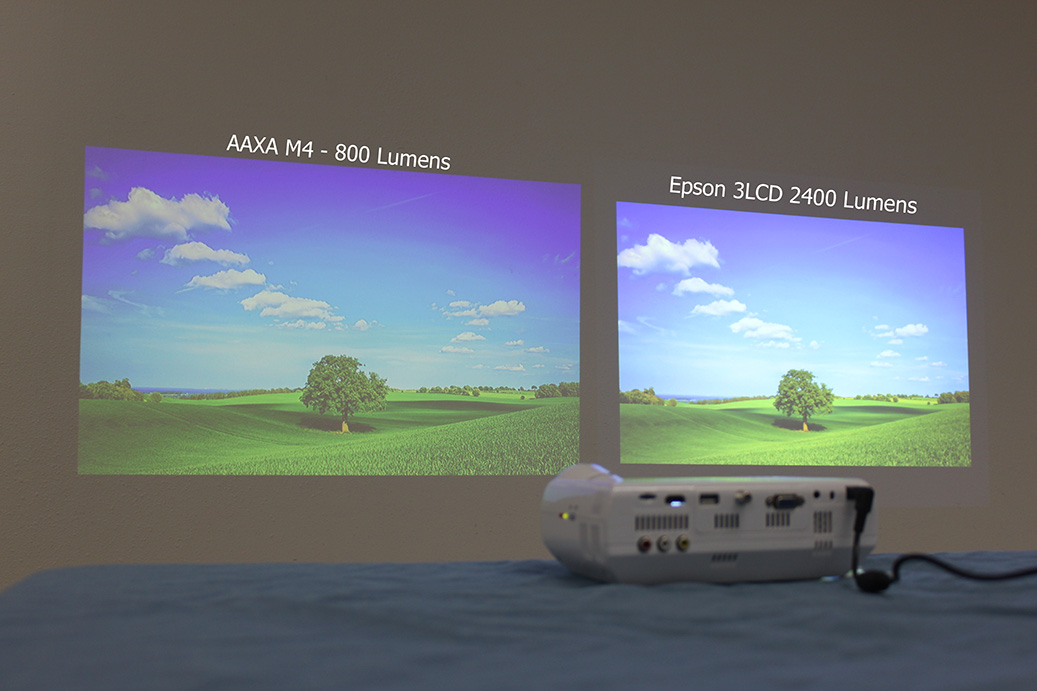

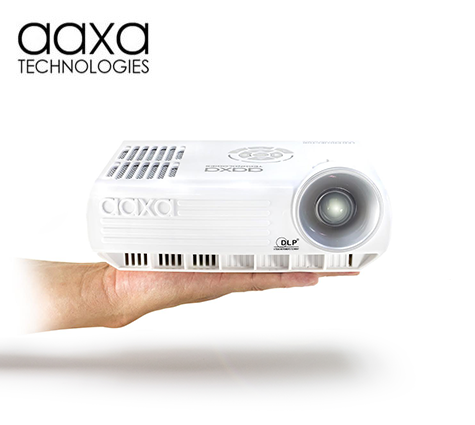

The AAXA M4 is the World's Brightest Battery Powered Projector. It revolutionizes mobile projection by mating a lithium ion battery with LED Projection technology. This union creates a no compromise portable projector that can deliver high quality images both plugged in or on battery power. With it's third generation optical system, the M4 features a brilliant 800 Lumen optical engine powered by 20,000 Hour Vibrant Color LEDs and a native HD resolution of 1280x800 (WXGA). This optical power house enables the M4 to deliver vivid 150" displays in dark areas and usable displays in brightly lit areas - a first for mobile projection.



*vivid and immersive 800 Lumen Light-Engine*




Battery Powered

---

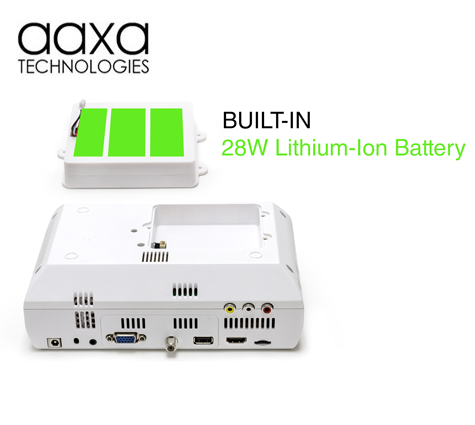

The AAXA M4 revolutionizes mobile projection with it's onboard lithium ion battery that enables anywhere-anytime projection. Powering this system is a 28-watt lithium ion battery that supports a 90 minute operating time (in eco brightness mode)* and produces over 3 times the brightness of other battery powered projectors. This onboard battery is known as a "premium grade" battery that is designed to retain 85% of it's charge over 1000 charge cycles. The AAXA M4 mobile projector now gives anyone the ability to deliver presentations without cords!

*(High brightness and unlimited operation is available by plugging-in through the included high efficiency AC power adapter.)

• 90 Minutes on a single charge


• Unlimited operation on AC Power


• Brightest Battery Powered Projector on the market

All-In-One Media Powerhouse

---

The AAXA M4 is the ultimate portable projector for business and professional users. It is an all-in-one projection solution that includes an onboard media player, digital picture playback, a digital TV tuner (North America ATSC only, antenna required), and an array of inputs including Composite, HDMI, and VGA. The powerful onboard media player decodes files directly off a USB stick or Micro SD Card and is capable of handling high resolution videos, movies, and high mega-pixel pictures. This feature allows users to leave the laptop and power cords at home by delivering presentations and videos directly from the projector while fully cordless. Finally, the array of inputs includes HDMI, VGA, and Composite video and enables users to connect an array of data sources including smart-phones directly to the projector. With the AAXA M4 professional users can deliver presentations, play videos, and watch digital TV all from a single self-powered device.




Longer Lifespan

---

Unlike traditional lamp-based projectors which require frequent bulb changes with expensive bulbs that cost hundreds of dollars, the M4 utilizes an LED light source that lasts 10 times longer. With a 20,000 hour lifespan it is possible to use this same bulb for over 13 years if used for 4 hours daily.






High Definition WXGA Resolution

---

The M4 features hightest-in-class native resolution at WXGA (1280x800), otherwise known as "High Definition" and is the base resolution for Blu-Ray DVDs. Unlike competitors that claim high resolution through digital scaling, the M4's native resolution is 1280x800 pixels and is capable of scaling resolutions up to 1080P.

Real Quick On & Off

---

Long warm-up and cool down times, sometimes for several minutes, are required for projectors using traditional lamps.

The LED light source enables the M4 to achieve full brightness within seconds. Of course, it turns off instantly as well.

Automatic Keystone Correction

---

The M4 has an advanced automatic keystone correction so your image is never out of proportion. The device will automatically sense if the projected image requires vertical keystone, and will adjust the image digitally.

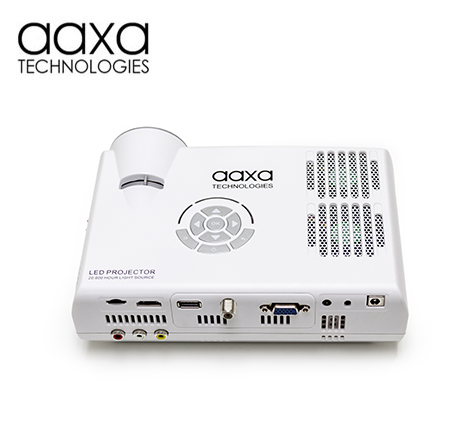

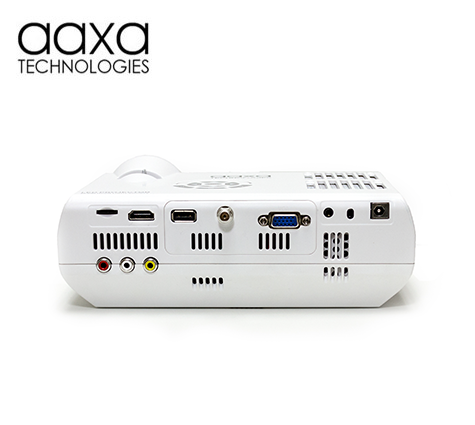

Inputs & Connectors

---

• Full-Size VGA Connection


• Full-Size 1080P HDMI Connection


• Full USB Port for Video, Photo Playback, and Accessory Inputs


• Composite RCA, Adapter Included


• Audio Out 3.5mm Jack, Headphone/Speaker out


• Digital TV Connection


• MicroSD Card Slot for Video, Photo Playback

Built-In TV Tuner

---

The AAXA M4 features a built-in DTV tuner for ATSC broadcast TV (North-American standard). With an onboard TV tuner, users can watch broadcast TV and never again miss a favorite game or a news announcement. The DTV function also decodes analog cable television enabling the M4 to double as a cable TV tuner and display. For over-the-air TV an antenna is required and must be purchased separately.

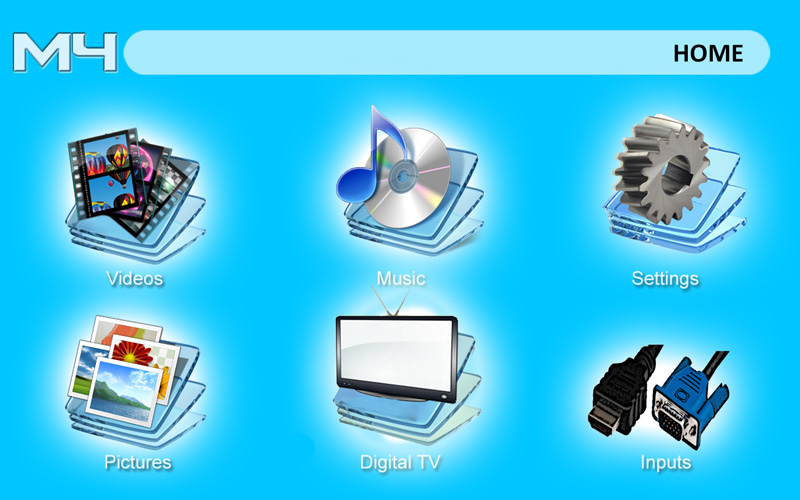

Versatile Multimedia Support

---

• Onboard media player supports popular file formats


• Share movies, videos, photos with friends and family

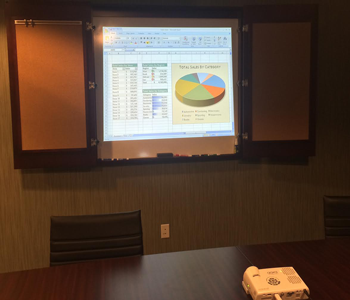

• Bring presentations anywhere and everywhere


• Enjoy gaming and entertainment without large TV's

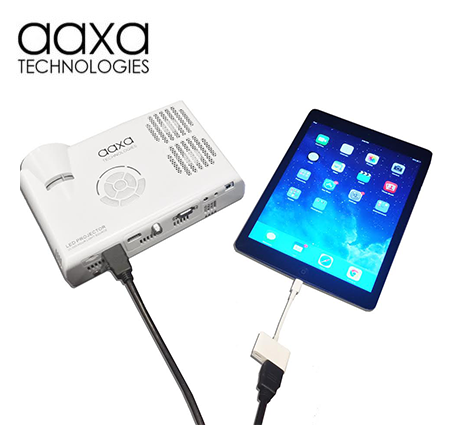

• Compatible with iPhone 5/6 & iPad
  (with Apple Digital AV Adapter)


• Compatible with Samsung Galaxy & Note
  (with MHL Adapter)


• Compatible with Nexus and HTC
  (with SlimPort Adapter)

Environmentally Friendly

---

The M4's light source consumes less power. The LED is also 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.

---

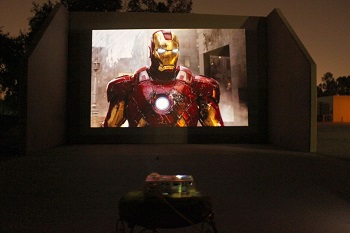

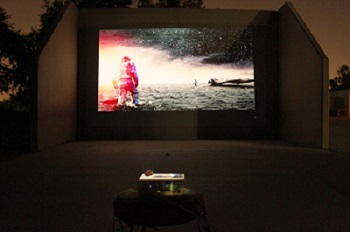

*150" image possible in low light conditions

PROJECTION SYSTEM

Max Resolution:	1920x1080 (1080P)
Native Resolution:	1280x800 (WXGA)
Brightness (Plugged In):	800 Lumens
Brightness (Battery):	400 Lumens
Contrast Ratio:	2000:1
Projection Lens:	Manual Focus
Projection Image:	Available Size 15 ~ 150 inch
Lamp:	Triple RGB LEDs with Vibrant Color Technology Life 20,000hrs
Projection Offset:	100%
Keystone Correction:	Auto and Manual (Digital)

GENERAL SPECIFICATIONS

Battery Runtime:	90 Minutes (Eco Mode)
Audio Output:	2W (x2) stereo speakers Stereo speaker/headphone mini-jack
Color:	White
File Playback:	MicroSD & USB Host Reader
Menu Language:	English, Spanish, French, Dutch, Chinese (Traditional and Simplified), Korean and Japanese
Aspect Ratio Control:	16:10
Dimensions:	8.3" * 5.3" * 3.1"
Weight:	2.44 lbs
Power Consumption:	70 Watts
Conformances:	CE, FCC Class A

INPUTS / OUTPUTS

Video In:	HDMI VGA Composite A/V DTV Antenna
Audio Out:	3.5mm Stereo Headphone Jack
USB:	5 Pin USB 2.0 (Full Size)
Memory Sticks:	MicroSD

INCLUDED ACCESSORIES

Wall Charger, Remote Control
