The AAXA L1 v2 Laser Pico Projector is an updated version of the L1, the world's first laser powered pocket projector. The updated design improves the performance of L1 v2 by increasing the thermal efficiency of the PCOS laser light engine. The unique three-color laser light source enables the L1 v2 to produce images with amazing color saturation that are always in focus. Designed for mobile professionals and entertainment, the AAXA L1 v2 pocket projector combines a revolutionary laser light source, proprietary despeckling technology, and an LCoS imager to achieve a 20 lumen output at 800x600 resolution without the pixilation problems found in some laser projectors.
The flexibility offered by the L1 v2 laser light source opens up a new world of possibilities in projection applications. The focus-free operation allows for rapid changes in projection size, simultaneous far and near surface projection, angled projection, and projection on curved and other non-flat surfaces. Its ultra-efficient optical engine enables the L1 v2 to produce rich images even in less-than-dark environments - and color-rich images up to 50" in dark environments. Combined with onboard 1.5 hour battery, the L1 v2 operates as a true hand-held laser projector without the need for any cables or external power source.
Built-in features include VGA input supporting up to 800x600 resolutions for laptop connections and on-board gamma correction. Additional features include a powerful media player capable of decoding of video (AVI, ASF, WMV, MPG), audio (MP3, WAV, AAC), images (JPG, GIF, PNG, BMP), and popular document formats (DOC, XLS, PPT, PDF), onboard memory, and a USB port capable of reading files directly off a standard USB thumb drive.
While the L1 v2 is slightly larger than the original L1, it still remains the world's smallest 20 lumen pico projector - no larger than a small cell phone, measuring only 4.2" x 2.1" x 1.2" and weighs in at 170 grams (including battery). The L1 v2 projector is much smaller than the traditional "pocket projector". It slips into a pocket or briefcase and comes with a stand, making it fully portable and configurable for maximum presentation flexibility. Additional accessories allow the L1 v2 to connect to Apple iPhone/iPod, Microsoft Zune, Sony Playstation Portable (PSP), and a wide range of cellphones from Nokia, LG, Samsung, and HTC.
World's Smallest 20 lumen Pico Projector
|
No larger than a small cell phone the L1 PCOS laser projector is the world's smallest 20 lumen pico projector at 4.2" x 2.1" x 1.2" and 170 grams. |
Focus Free Operation
The laser optical engine eliminates the need for focusing optics. The L1 projector produces a clear in-focus image on any surface regardless of curvature or distance, allowing rapid changes in projection size, simultaneous far and near surface projection, angled projection, and projection on curved and other non-flat surfaces.
Super Color and Image Quality
Wider color range & amazing color saturation. The RGB laser light source far exceeds the NTSC standards with a 140% gamut and 2000:1 contrast ratio.
Versatile Multimedia Support
- Onboard media player supports popular file formats
- Share movies, videos, photos with friends and family
- Bring presentations anywhere and everywhere
- Enjoy gaming and entertainment without large TV's
Supports Popular Document Formats
The L1 media player includes readers for popular professional documents. Now you can put your presentations and documents in your pocket and display them anywhere!
Real Quick ON & OFF
|
Long warm-up and cool down times, sometimes for several minutes, are required for projectors using traditional lamps. |
|
The PCOS Laser Light Engine enables the L1 to achieve full brightness within seconds. Of course, it turns off instantly as well. |
Environmentally Friendly
|
The AAXA PCOS Laser Light Engine employs 10,000 hour laser-diodes that consume less power. The lasers are also 100% free of mercury and, as there in no bulb to be replaced, there are no discarded bulbs |
| Native Resolution: | SVGA (800x600) |
| Brightness: | 20 ANSI-Lumens |
| Contrast Ratio: | 2000:1 |
| Noise: | < 20dB |
| Projection Lens: | Auto Focus |
| Projection Image: | Available Size 15 ~ 80 inch |
| Lamp: | RGB Laser Life 10,000hrs |
| Projection Angle: | 33.4° |
GENERAL SPECIFICATIONS
| Audio Output: | Mono 1W speaker Stereo speaker/headphone mini-jack |
| Color: | Black |
| Storage Capacity: | USB Memory Stick Reader |
| Menu Language: | English, Chinese Simplified |
| Aspect Ratio Control: | 4:3 |
| Dimension: | 4.2" x 2.1" x 1.2" |
| Weight: | 170g |
| Power Consumption: | 7.5w |
| Power Supply: | DC 2300 mAh li-ion rechargeable battery AC100~240V(Free Voltage), 50Hz/60Hz |
| Supported Formats: | Video: AVI, MPEG, WMV, ASF, MPG Document: Word, Excel, PowerPoint, PDF Image: JPEG, GIF, BMP, PNG Music: MP3, MP2, OGG, WAV Resolution: 720x576, 320x240 (WMV) Subtitle File: SMI |
| Conformances: | CE, FCC Class A |
INPUTS / OUTPUTS
| Video In: | VGA (15-pin Adapter Cable) Composite A/V (Adapter Cable) |
| Audio Out: | 3.5mm Stereo Headphone Jack |
| USB: | USB 2.0 |
INCLUDED ACCESSORIES
| AC Adapter, A/V Cable, VGA Cable, Tripod Clip (no tripod) |
Comparison of AAXA Projectors
|
AAXA L1 iPod A/V Cable
MSRP: $30.00 $24.99
|

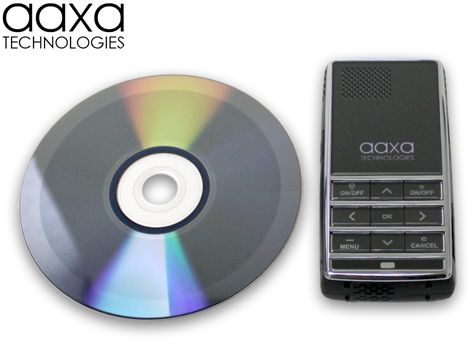

| L1 Laser projector with memory stick | Projected on an alley wall |
 |
 |
| Picture on curtains (still in focus) | Projected on two panes (still in focus) |
 |
 |
| Stop sign projected on to a car | Picture on a door |
 |
 |
| User submitted video review | |
